Ref 90813-CCT-24W

24W circular LED plate - 22W- 20W -18W with motion detector - 2700K + CCT - Osram Chip

€15.95
Color temperature
In stock 580 Items
Quantity

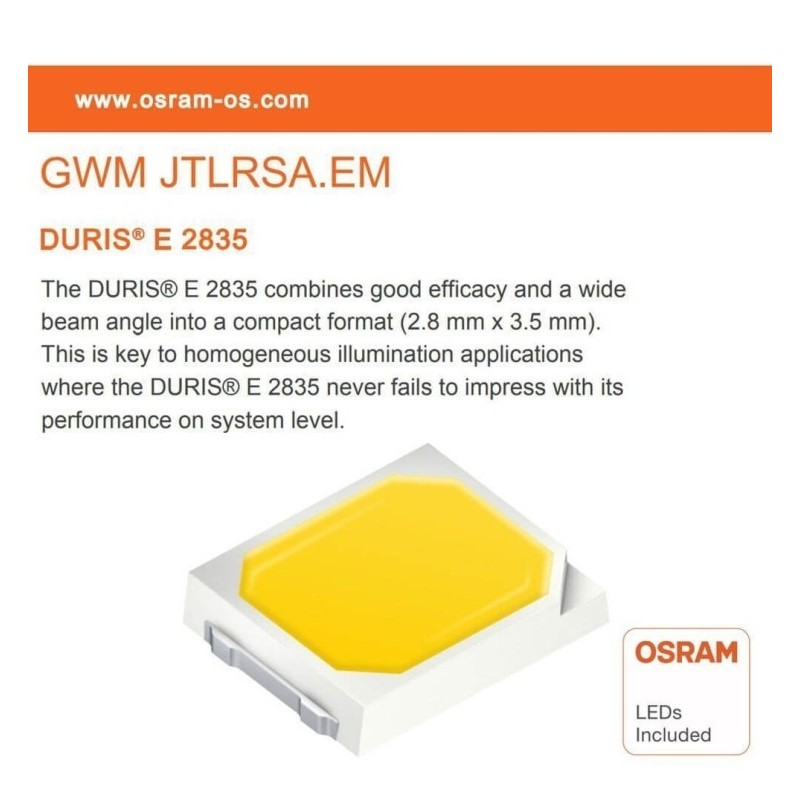

LED Osram chip Duris E 2835 with Motion sensor and luminosity control; Selectable power: 18W-20W-22W-24W. Incorporates 4 Colors selectable light color (2700K-3000K-4000K-5700K). Can be configured to light up according to exterior light (all day, at dusk or total darkness), in addition downlight You can regulate the ignition time according to the needs. Made of aluminum with a white finish is a product specially designed to save. Start saving now!

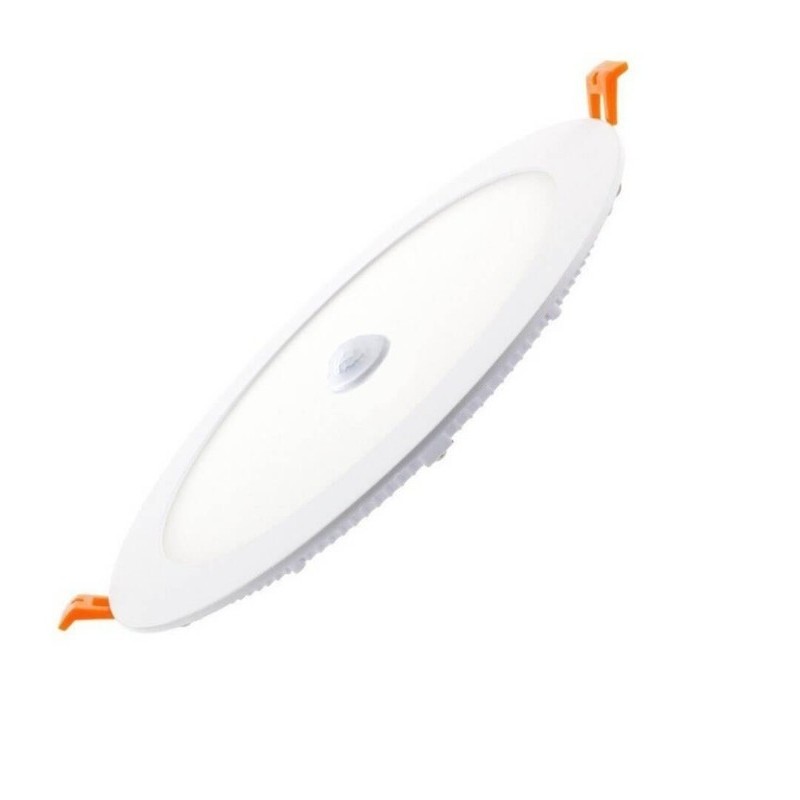

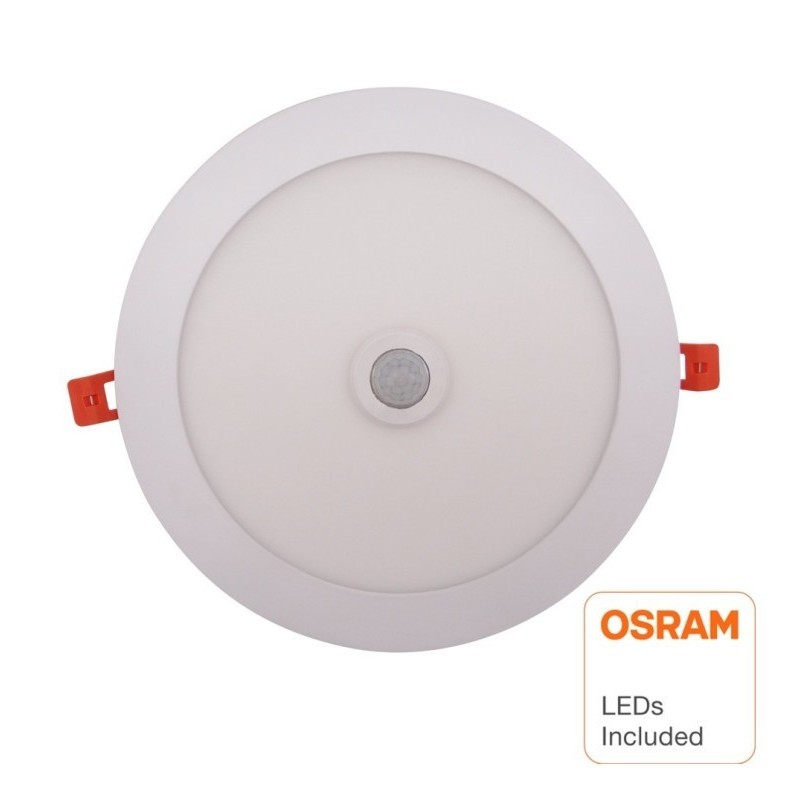

24W circular LED plate - 22W- 20W -18W with motion detector - 2700K + CCT - Osram Chip

CCT LED plate with motion sensor LED manufactured in aluminum. With a white finish and a selectable power of 24W - 22W - 20W - 18W - It is a product specially designed for passage areas.

Owns a range of Scope of 6 meters.

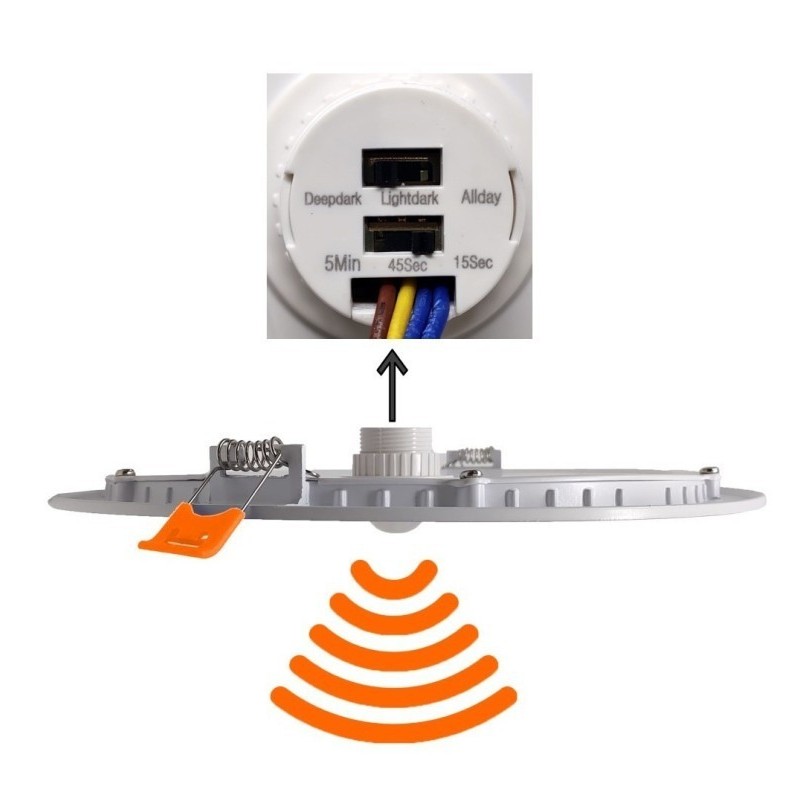

Thanks to its 3 options detector of luminosity, you can regulate your operation to make it work according to the needs. The detector also allows 3 time regulations: 15 seconds - 45 seconds - 5 minutes.

Inside it includes LED diodes Osram chip high gloss to achieve quality lighting, thanks to its great resistance, the focus has a higher durability, reaching 100,000 ignition cycles while getting a great saving In your light bills.

This product has a protection Ip20, so it is an inner use product. With his primary angle of 120º A uniform light is obtained in any space, with which a uniform environment is created.

In the LED driver of the luminaire you can select the power -w- and the color of the light you want to give you the luminaire.

24W circular LED plate uses - 22W- 20W -18W with motion detector - CCT - Osram Chip

  • Home lighting: Bathrooms, kitchens, corridors, lounge.
  • Business lighting: Bathrooms, Hall, offices.
  • Commercial lighting: shopping centers and small shops.

In Iberica de Enlightenment, we ensure that our products are guaranteed quality and offer all the necessary elements for distribution, import or wholesale, including the technical sheet of each LED product.

REFERENCE 90813-CCT
Nominal power 24w-22w-20w-18w
Nominal voltage 85v-265v
Light temperature Selectable color: 2700K -3000K-4000K-6000K
CRI - Index Chromatic Reproduction 85
Construction material Aluminum + pc
Energy class A +
Light-lm 18W-2250LM 20W -2500LM 22W -2750LM 24W-3000LM
Type of LED SMD 2835
Angle opening (º) 120º
Efficacy LED diode (LM / W) 160 lm / w
Luminous efficacy (LM / W) 125 LM / W
Certificates CE - RoHS
Estimated Life LED Diode (H) 40.000
Measures (mm) Ø225mm H20mm
Work frequency (Hz) 50 / 60hz
Temperature range (ºC) -20 ° C ~ + 55 ° C
Lit cycles 100.000
Start time (s) 0,2s
Ceiling cut (mm) Ø200mm
Control modes INFRARED
Driver included Driver No Flick - No blinking
Guarantee years 3
Scope (M) 6 m.
Ignition time Programmable: 15 sec - 45 sec. -5min
