Buy LED Luminaire Emergency Conversion Kit
Buy LED Luminaire Emergency Conversion Kit
Buy LED Luminaire Emergency Conversion Kit
Ref BATERYPCTMBW

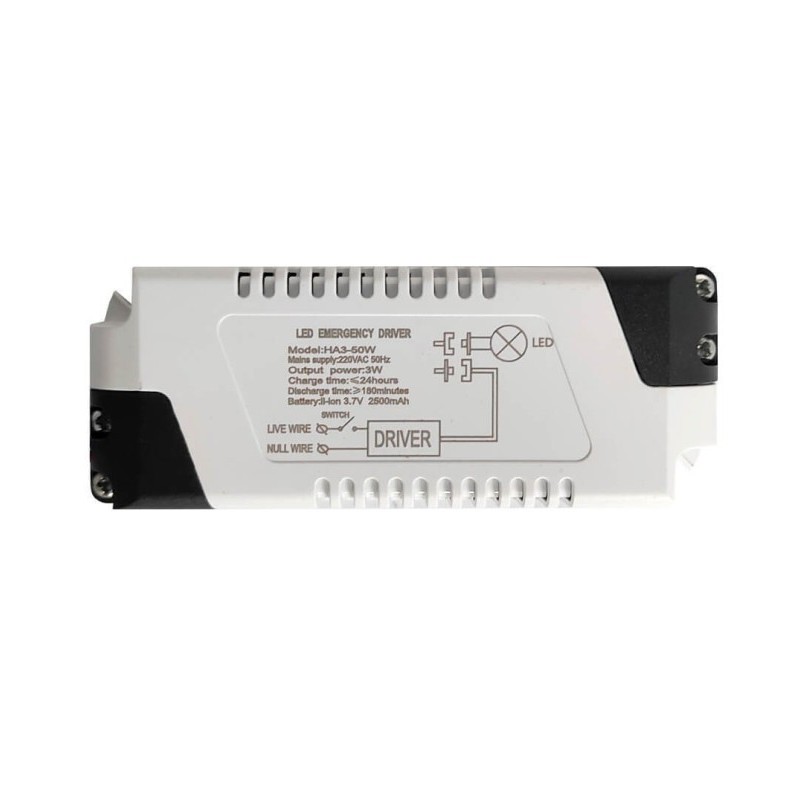

LED Luminaire Emergency Conversion Kit -

€16.98
In stock 449 Items
Quantity
Add to Cart
Buy Now

Convert all kinds of LED luminaire - With Driver -   In emergency. With the emergency battery 2400 mAh you will get any LED luminaire into an emergency. Its operation is by regulating 30% of the luminaire where the instal installs automatically. Maximum of 50W. (Not suitable for Driverless products)



The battery has 2400 mAh (2.4Ah) of a range that goes according to consumption according to the watts of the luminaire where it is installed. The luminaire will regulate the luminous flux to 30% of its total power, resulting in a minimum duration of:

  • 50W: Duration 50 minutes
  • 40W: Duration 60 minutes
  • 30W: Duration: 75 minutes
  • 20W: Duration 90 minutes

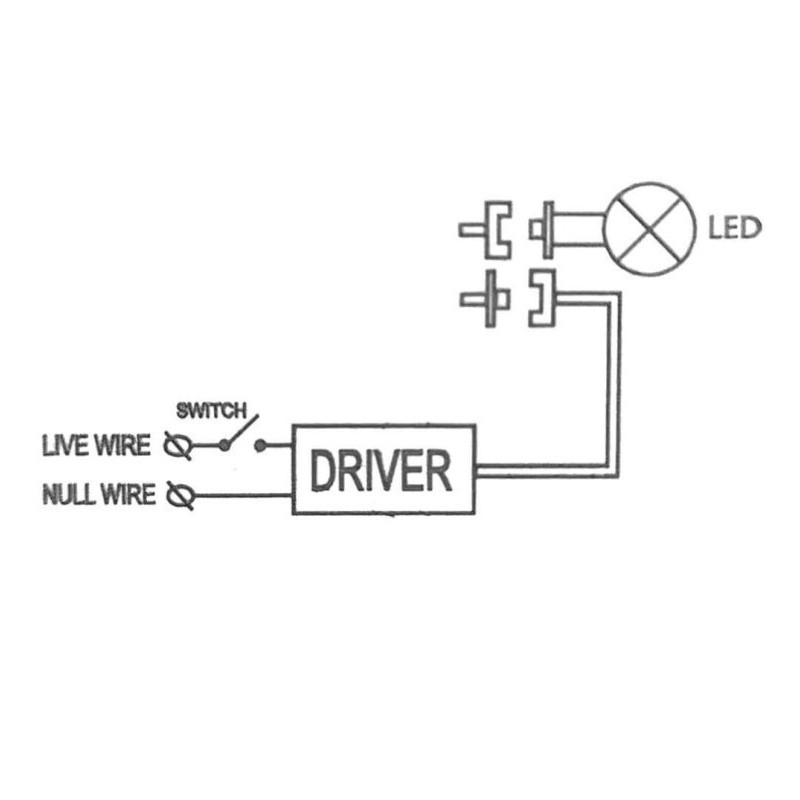

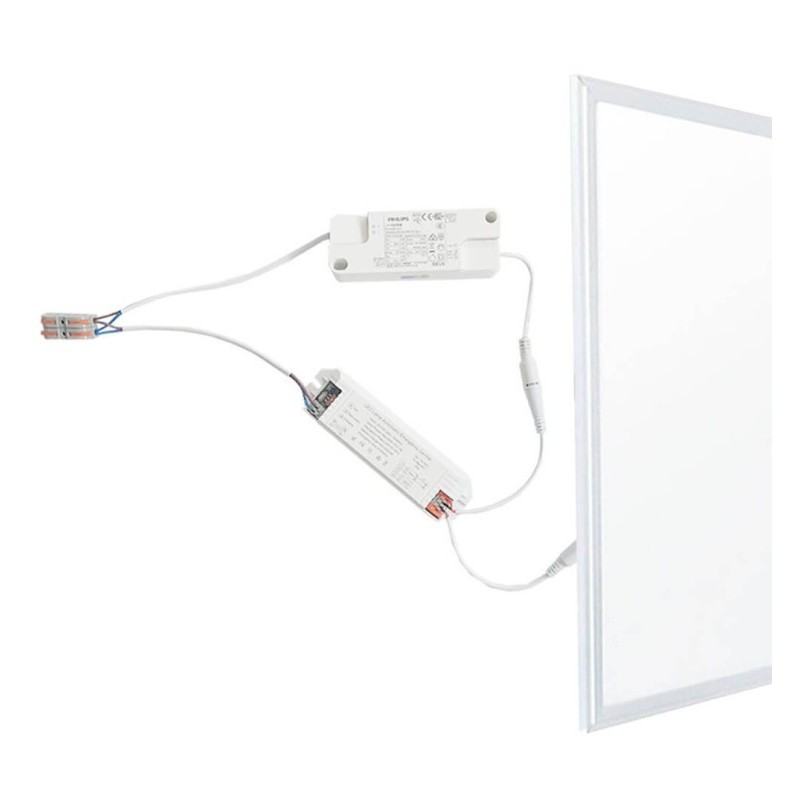

The battery is installed by feeding the LED driver of the luminaire and connecting to the electrical network.

REFERENCE BATERYPCTMBW
Nominal voltage Dc18v-175v
Energy class A +
Certificates CE - RoHS
Measures (mm) 140x55x33mm
Work frequency (Hz) 50 / 60hz
Temperature range (ºC) -15º + 50º
Additional information Battery 3.7V / 2.5AH
Battery material LIFEPO4 - Lithium-ferrophosphate -LPF
Download time (h) 50W: 50 Minutes - 40W: 60 Minutes - 30W: 75 Minutes - 20W: 90 Minutes
Guarantee years 2
Technical sheet BATERYPCTMBW
