Twilight sensor IP20

This twilight sensor for interiors allows great energy savings to automatically regulate your 1-10V luminaires depending on natural ambient light.

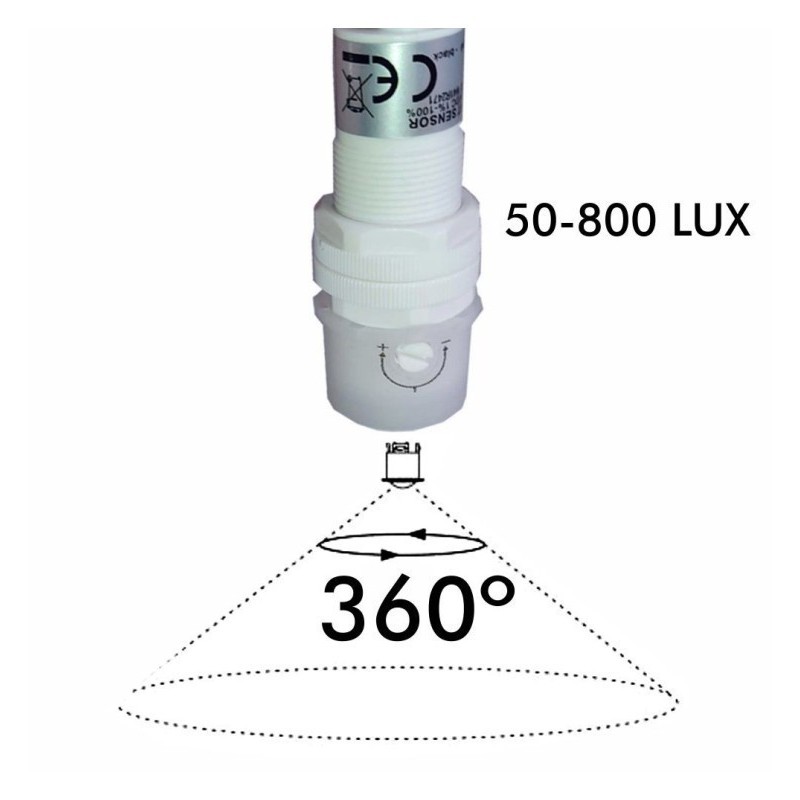

The angle of the photoelectric / Twilight sensor 1-10V has a 360 ° detection angle and a regulation range of 1-100%.

This twilight sensor is for use in luminaires with 1-10V adjustable drivers.

Operating mode:

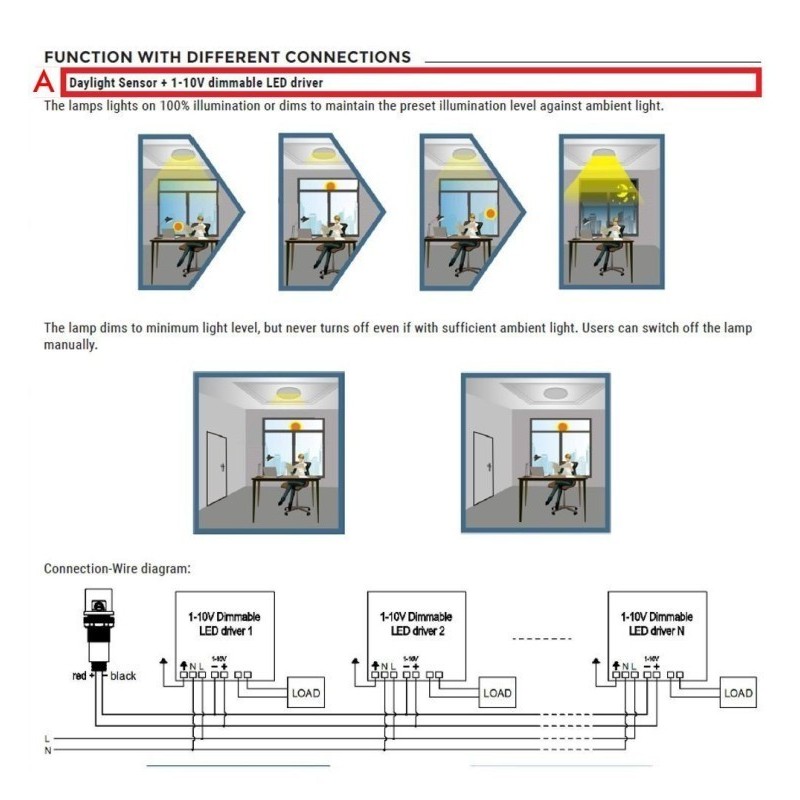

Gradual operation: increases and decreases the intensity of light of LED luminaires regarding the level of ambient light predefined; It has a regulator on one side to modify sensitivity with respect to detected ambient light.

Therefore, the sensor 1-10v uploads the intensity of the luminaires when the ambient light decreases and on the contrary, if the ambient light increases, the sensor reduces the intensity of the luminaires, always allowing adequate lighting in an efficient and saving manner.

Our sensor allows you to light the lighting automatically, at nightfall and disconnect it automatically at dawn. This allows the installation to know if it is without light inside and thus be able to automate the lighting of your installation to a greater extent.

Advantage: great energy saving:

Our 1-10V sensor It allows us to optimize efficiency in the lighting system, since we took advantage of the natural light available at all times.

A very interesting option and that gets even more savings is to combine our twilight sensor 1-10V with a presence detector to completely automate the operation of the luminaire.

It is an automatic regulation system, which does not need to change schedules, since it is automatically regulated according to the detected light and taking into account the variations in the lighting levels caused by local weather conditions or with the variation in the dusk and dawn time Throughout the year, as well as the change of time in summer and winter.

Installation:

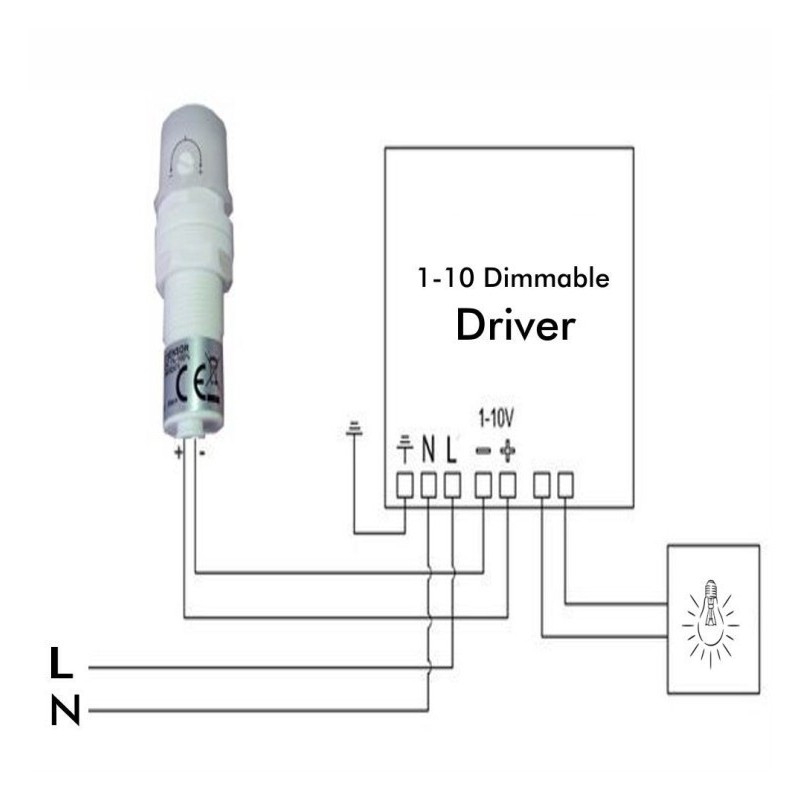

The assembly is very easy: Direct to the 1-10V output of the 1-10V driver.

Our 1-10V sensor can be installed on both surface and recessed on the roof.
