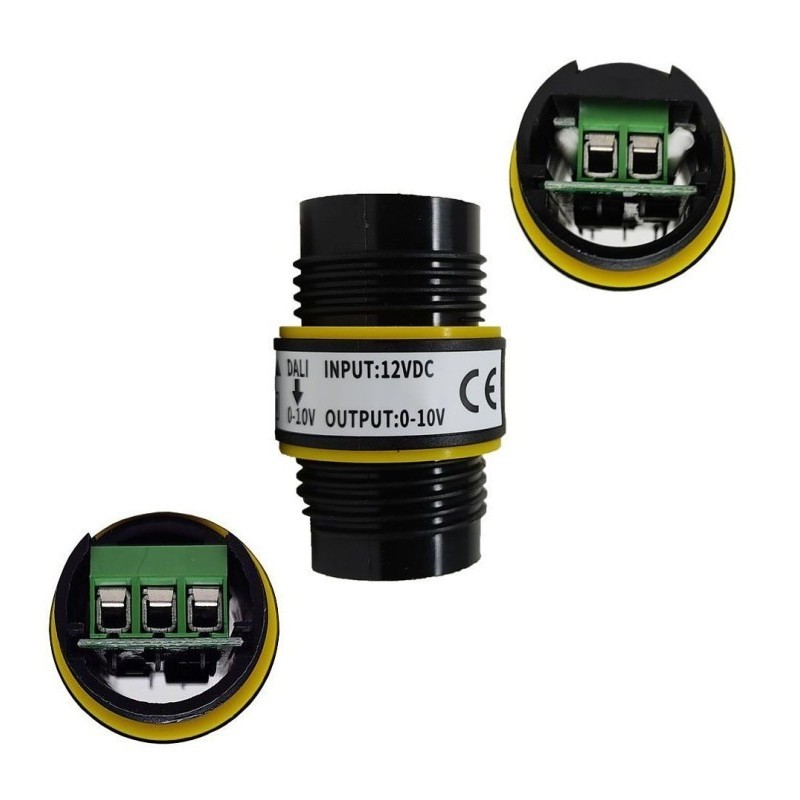

Signal converter 1-10V to DALI - Model LF-SCD010B

It is an isolated signal converter, which transforms the DALI / push signal into an 0-10V output.

It is adjusted to Dali Protocol IEC 62386-101, 102, 103, 207.

Its input voltage ranges between 11VDC and 13VDC.

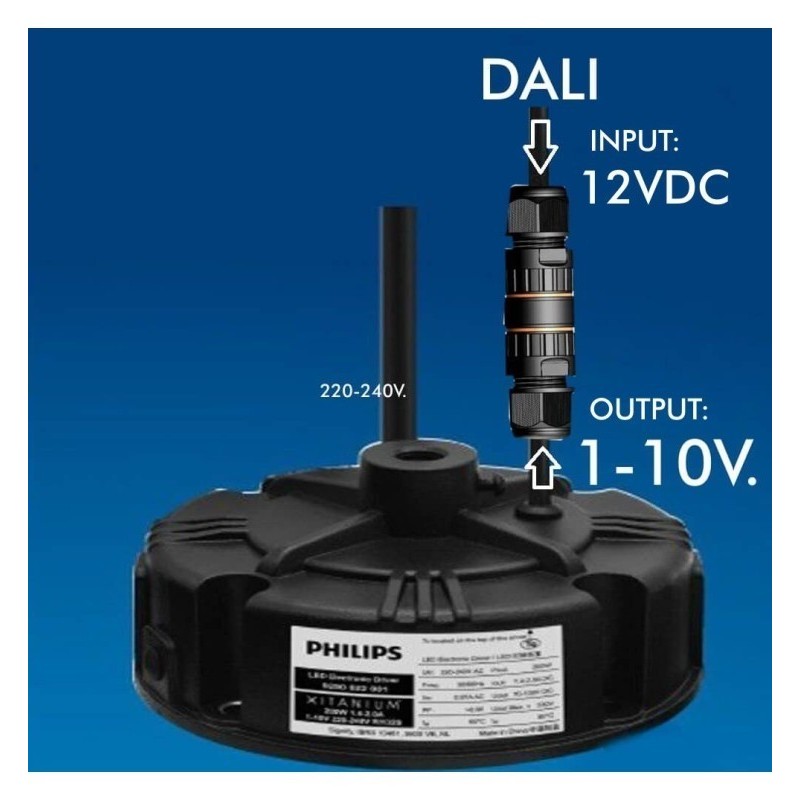

With a single converter can Control up to ten 0-10V LED controllers With a strong output signal of 0-10V. It is flexibly adapted to many different Dali lighting systems designs.

• 0-10V attenuation signal output; compatible with the 0-10V attenuation controller; High performance, high reliability
• The 0-10V output signal can control a maximum of ten 0-10V LED controllers and achieve a synchronized regulation
• Regulation range of 10% to 100% (from dirty to shut down)
• DALI and PUSH regulation function; Logarithmic regulation mode and linear regulation mode can be selected through the DALI interface

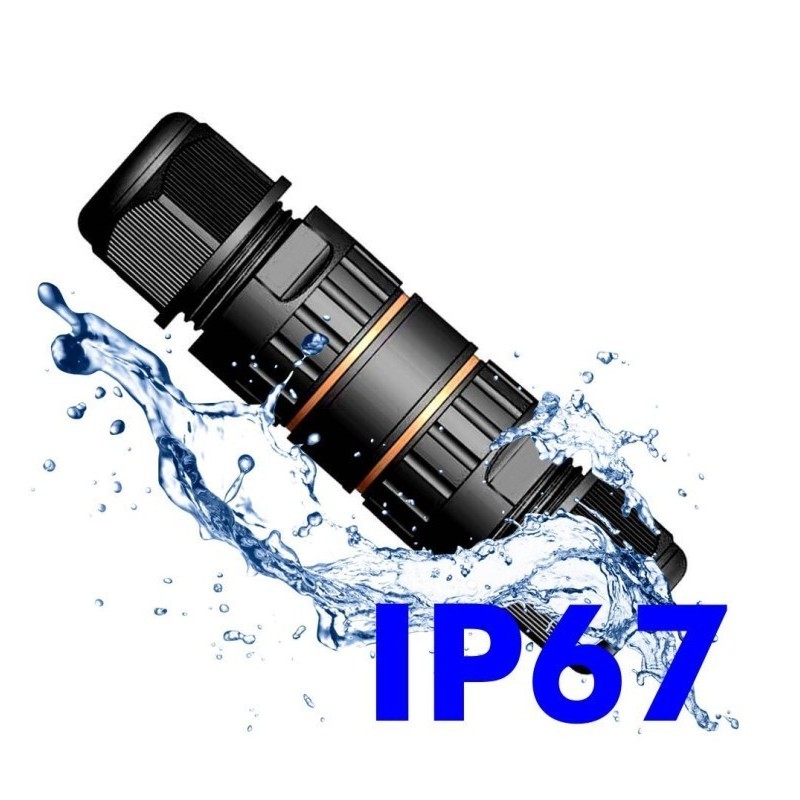

• IP67 Classification; waterproof housing
• Warranty: 5 years

Uses of the 1-10V signal converter to DALI

• Lighting the plant
• Interior office lighting
• Decorative lighting
• Commercial lighting
• Residential lighting

The DALI regulation function and the pulsation regulation function can not be used at the same time, since otherwise the DALI regulator will be damaged.
